Introduction
The Eaton supercharger introduced in Kawasaki’s Ultra 300 marked a revolutionary shift in Jet Ski performance. To understand the significance of this innovation, it’s essential to look back at Kawasaki’s earlier supercharged models and the challenges they faced.
The Ultra 250 & 260: The First Steps into Supercharged Performance
Kawasaki made a major leap in high-performance Jet Skis with the introduction of the Ultra 250. This machine delivered an impressive 250 metric horsepower, making it the most powerful Jet Ski at the time. Sales skyrocketed, but with this boost in power came several mechanical challenges. The Ultra 250 and its successor, the Ultra 260, offered blistering acceleration but were notorious for reliability issues. These included problems with the manual belt tensioner system, cylinder head cracking, and pump inefficiencies. However, the most significant concern revolved around the supercharger itself.
The Ogura Supercharger: An Ambitious but Flawed Design
The Ultra 250 and 260 models featured a twin-lobe rotor supercharger with a stationary damper-style clutch, manufactured by Ogura Clutch in Japan. Ogura, primarily known for its work with clutch systems and small superchargers used in vehicles like the Toyota Yaris, created a unit that, while effective in theory, suffered from serious durability issues. The main problems included shaft failures under heavy acceleration, overheating due to inadequate air cooling, and rotor shift, which could lead to catastrophic mechanical failure. These issues prompted Kawasaki to seek a more reliable solution.
The Eaton Supercharger: A Game-Changing Innovation

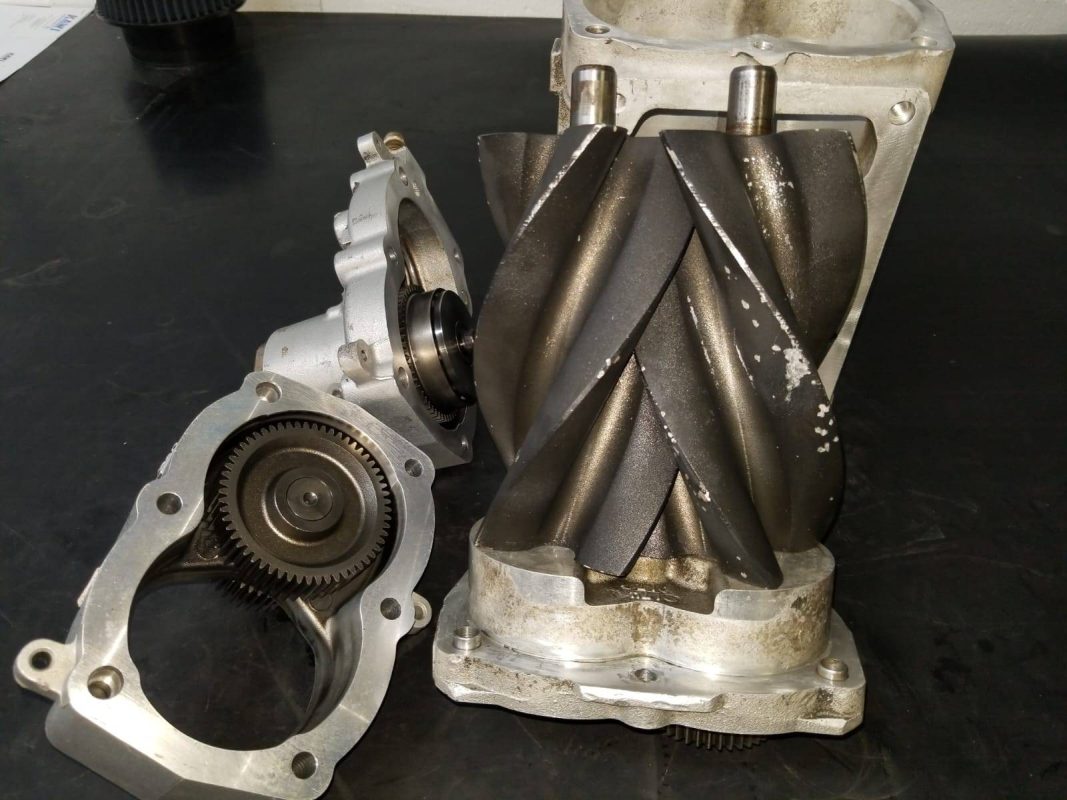

To address the persistent supercharger failures, Kawasaki collaborated with Eaton, a leading U.S. manufacturer of twin-screw, multi-lobe superchargers primarily used in automotive applications. This partnership led to the development of a next-generation supercharger for the Ultra 300, utilizing Eaton’s R-series 4-lobe, twin-screw design. Unlike the previous models, this new unit was liquid-cooled and capable of moving an impressive 2 liters of air per revolution. The supercharger itself was produced by Eaton, while Kawasaki developed the gear housing and damper system, labeled with the K-1 designation. With this innovation, the reliability issues of the past were effectively eliminated, and the design has remained unchanged since 2011 due to its outstanding performance.
Ensuring Longevity: Key Maintenance Insights
Despite its durability, the Eaton supercharger does have a critical wear component: the rear needle bearings. Over time, these bearings dry out and become susceptible to moisture intrusion, leading to pitting, seizure, and potential failure. If left unaddressed, bearing failure often necessitates replacing the entire supercharger unit. Regular maintenance, however, can prevent this issue and extend the lifespan of the system significantly.
KP recommends performing routine rebuilds by replacing the needle bearings with high-quality alternatives and using superior grease to mitigate wear. Another crucial upgrade involves replacing the factory oil drain plug with KP’s hex version, which prevents it from seizing in place. When selecting a rebuild kit, the basic option covers essential needle bearing replacements, while the economy and premium kits offer additional bearing replacements depending on the user’s needs.
Supercharger Recoating: Restoring Efficiency and Performance

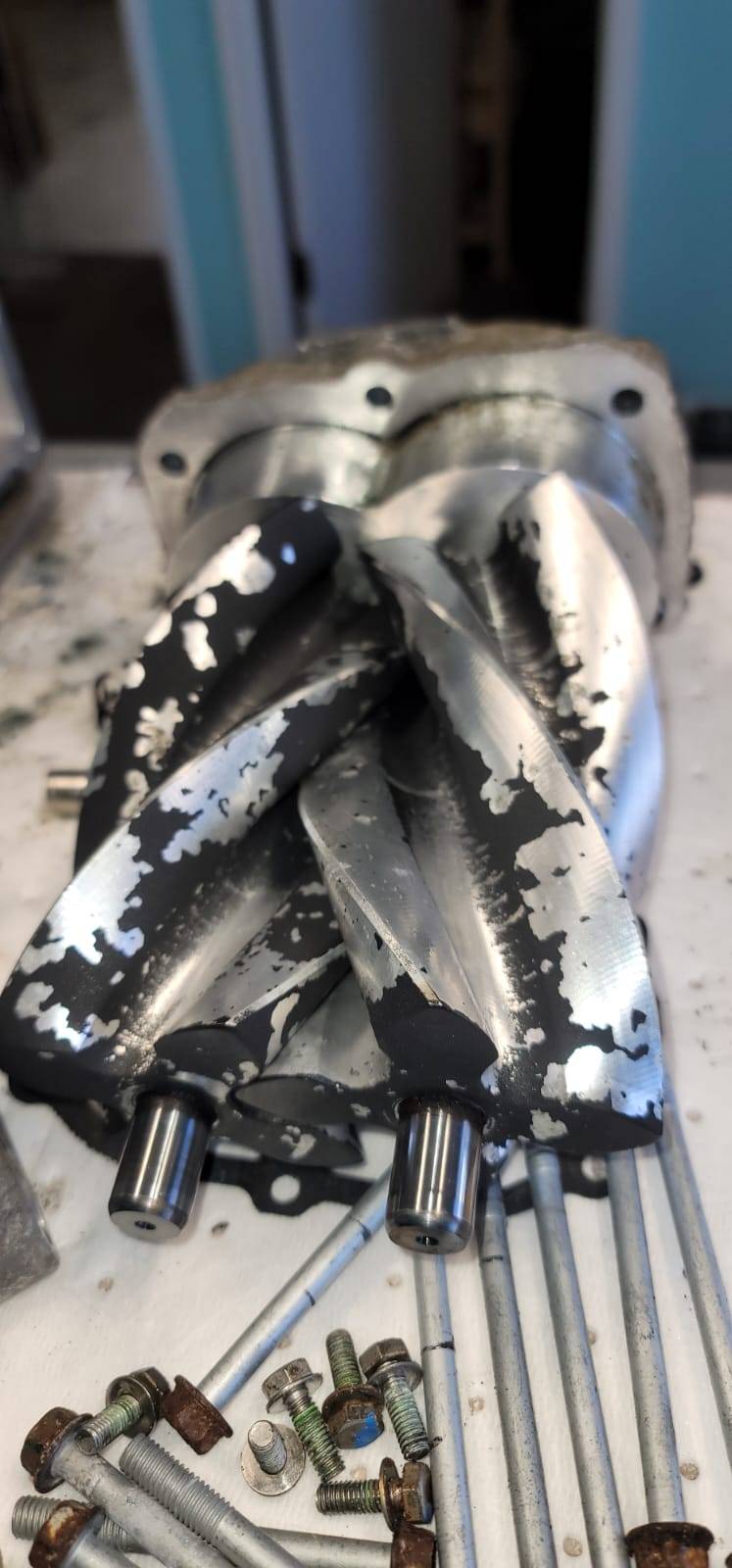

In addition to mechanical maintenance, KP offers a recoating service for superchargers with worn or damaged rotor coatings. This process involves applying a thicker, softer material than Eaton’s original coating, which naturally wears into tighter tolerances over time. The result is a more efficient supercharger that minimizes wasted energy and improves overall performance. Recoating is a cost-effective alternative to full replacement and can restore a worn supercharger to like-new condition.
Get Started with KP’s Supercharger Services
For those looking to rebuild, upgrade, or recoat their Eaton supercharger, KP provides a range of services to ensure peak performance and longevity.
Before
After
